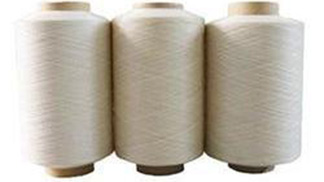

HOT MELT YARN

  • Product service: Product introduction



      To provide the titled coated yarn capable of bonding easily with heat, having excellent adhesive strength, and effective also for the reinforcing of the adherend, by applying an ethylenevinyl acetate copolymer resin layer to the circumference of a core yarn at a specific ratio.


CONSTITUTION

        The hot-melt adhesive coated yarn 3 having a fineness of preferably 400-6,000 denier is prepared by applying an ethylenevinyl acetate copolymer resin layer 2 having a vinyl acetate content of preferably 5-50wt% to the outer circumference of the core yarn 1 (e.g. monofilament or multi-filament of polyester, nylon, etc. having a fineness of 100-2,500 denier). The amounts of the core yarn and the ethylene-vinyl acetate copolymer resin are 10-50wt% and 90-50wt%, respectively.


End-Use Markets

        Manufacture of tough film by bonding synthetic resin films with each other. The sealing, bonding, etc. of container, bag, etc.



                  2008823102111388.jpg                 2008922155657407.jpg                           2008922155657952.jpg



                                          Hot melt yarn thread for fixing in resin fiber reinforced fabric


                  2008823102111410.jpg                 2008922164111922.jpg                 20081016152447371.jpg



        Hot melt weft yarn in                                           Plain cloth hot melt adhesive                                         Wood stitching

 unidirectional carbon fiber fabric                               thread lock edge (twisted edge)


STANDARD PRODUCTS:


Product ID

                                            Product Types

GEY034075

75

GEY034085

85

GEY068150

150

GEY068200

200



PRODUCT DATA


Adhesive

EVA

Core Fiber

GF GLASS

Appearance

       White

Packing

Straight

Wrapper

carton

Package

rolls per carton

Weight

2-3 kg per roll

Adhesive  (175C)

20000±2000

Percent  Coating ( %

66±5

Core Fiber (tex

68±5

Grams per Kilometer (tex

200± 10%

Softening Point   (B&R)  C

1 15±5

Breaking-Strength (N

≥25
