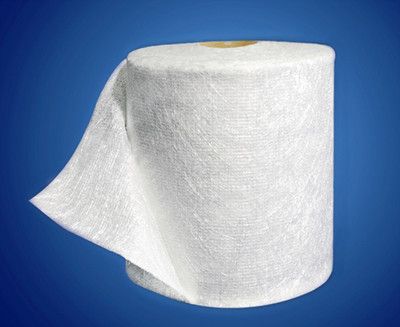

GLASS STITCH MAT
It is made by chopping continuous strands into chopped strands and stitching them together in disorderly arrangement.The weight is generally 350~900g/㎡, and the maximum width of the product can reach 110 inches.
Product features
1. The varieties and specifications are complete, the width is 200mm-2500mm, without any adhesive, and the sewing thread is polyester thread.
2. Good thickness uniformity and high wet tensile strength.
3. Good mold attachment, good drapability and easy operation.
4. Excellent rolling characteristics and effective reinforcement.
5. Good resin permeability and high construction efficiency.
Applied range
This product is widely used in pultrusion, injection molding (RTM), winding molding, compression molding, hand paste molding and other FRP molding processes.It is widely used to reinforce unsaturated polyester resin. The main end products are FRP hulls, plates, pultruded profiles and pipe linings.
PRODUCT TECHNICAL CHARACTERISTICS
Production No | Overall Density (g/m2) | Chop Density (g/m2) | Yarn Density (g/m2) |
EMK300 | 309.5 | 300 | 9.5 |
EMK380 | 389.5 | 380 | 9.5 |
EMK450 | 459.5 | 450 | 9.5 |
EMK600 | 609.5 | 600 | 9.5 |
EMK900 | 909.5 | 900 | 9.5 |
PACKAGING
Stitched Mats are wound onto a paper tube which has an inside diameter of 86mm, and the roll has a diameter of 300mm. The roll is wrapped up with plastic film, and then packed in a cardboard box or wrapped up with kraft paper. The rolls are to be horizontally placed. For transportation the rolls can be loaded into a container directly or on pallets.
PRODUCT STORAGE
Unless otherwise specified, the fiberglass products should be stored in a dry, cool and moisture-proof area. The room temperature and humidity should be always maintained at 15℃~35℃ and 35% ~ 65%.It is best if the product is used within 12 months after production date.The fiberglass products should remain in their original packaging until just prior to user .
To ensure safety and avoid damage to the product, the pallets should not be stacked more than two layers high. When the pallets are stacked in 2 layers, special care should be taken to correctly and smoothly move the top pallet.
