CFM300 SERIES

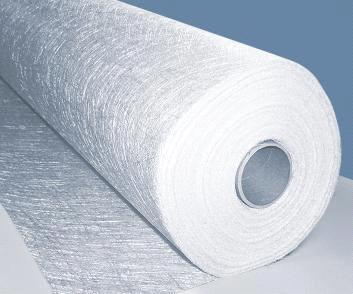

Continuous filament mat is produced by randomly throwing E glass fiber filaments. The continuous E glass fiber filament mat has the characteristics of high modulus and high tensile strength, and its silane coupling agent makes the mat have good compatibility with unsaturated polyester resin, vinyl resin, epoxy resin and other resins. The continuous long fiber also ensures its stable and excellent mechanical properties.
CFM300 SERIES
1.The stable and different combustible content ensures that it is well suitable for pultrusion, RTM, SRIM, molding, lamination and other processes.
2. Compatibility of multiple resins
3. Beautiful product surface
4. It is suitable for all kinds of moulds with complex shapes.
5. Good die-cutting performance
6. The product has excellent mechanical properties.
7. Easy to cut, splice and overlap, reducing waste.
8. Fast wet out speed.
End-Use Markets
STANDARD PRODUCTS
Product ID | Product Types |
CFM255 | 255 |
CFM300 | 300 |
CFM450 | 450 |
CFM600 | 600 |
CFM900 | 900 |
CFM300 PRODUCT DATA
Glass type | E GLASS |
Sizing | Silane |
Linear density（tex） | 25 |
Weight（g/㎡） | 300 |
Breaking strength (N) | 100 |
Loss On Ignition(%) | 5.5 |
Moisture content(%) | 0.2 |
Solubility in styrene | Very slow |
Suitable resin | UP/VE/EP |
Suitable process | Pultrusion |
Width（mm） | 1850 |
Roll length（m） | 240 |
Roll diameter（mm） | 550 |
Roll weight（kg） | 133 |
