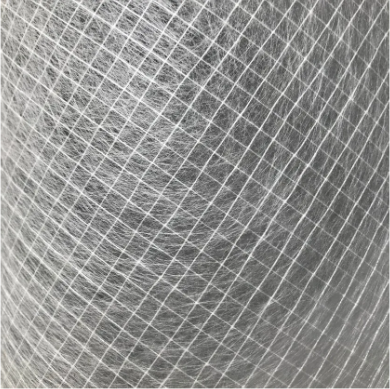

REINFORCED SCRIM
Scrims can be produced with a square shape pattern (orthogonal) or diamond shape pattern (triaxial). The construction can be varied from 0.4 ends per cm to 4 ends per cm. The volume and width of products available from the laid scrim process gives a security of supply with a short lead time to satisfy the most demanding customers requirements.
APPLICATION REINFORCED SCRIM
CDYW with experience of polyester, nylon and glass yarns from 76dTex to 12,000dTex in laid scrim manufacture in fabric densities from 0.4 to 4 ends per centimetre, have the scrim processes to solve your reinforcement problem.
Laid scrims are used in roofing, flooring, tapes, automotive, aerospace, composites, hygiene, medical, packaging and many other industries.
PRODUCT DATA
CONSTRUCTION | 5.0*5.0mm |
WARP YARN | 34 TEX Glass fiber |
WEFT YARN | 34 TEX Glass fiber |
WARP TENSILE | 200N/50mm |
WEFT TENSILE | 200N/50mm |
WARP ELONGATION | 2.9 % |
WEFT ELONGATION | 2.9 % |
MATERIAL WEIGHT:/m2±8% | 15.5 g/m2 |
BINDER CLASS | PVOH |
Bobbin(N.W.)KG | 3.2-3.5 |
APPLICATION | Material Composite |
