CSMP SERIES

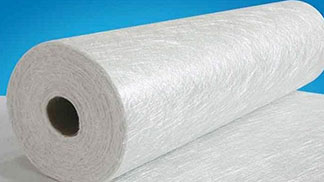

CSMP SERIES chopped strand mat is constructed of randomly oriented E-glass fiber strands off various lengths. The strands are
held together in mat form by a highly soluble polyester powder binder. The glass strands are coated with a silane based sizing
system for excellent performance in multiple resin systems.
CSMP SERIES is designed to be compatible with polyester, vinyl ester, and epoxy resins and used both as gel coat backup and
standard laminate reinforcement for most contact molding applications.
CSMP SERIES Features and Benefits:
•Uniform distribution of fiber strands
•Fast wet-out and wet-through
•Easy roll-out and excellent air release
•Good tensile strength and ease of handling
•Good drapability and conformability to radii
•Low resin consumption
•High mechanical properties of the laminate
• Approved by Lloyd’s Register
End-Use Markets
AVAILABLE PRODUCTS
Product ID* | Nominal Area Wt. g/m2 | Nominal Area Wt. oz/ft2 | Nominal LOI (%) |
CSMP-100G-XX | 100 | 0.32 | 3.5 |
CSMP-150G-XX | 150 | 0.50 | 3.5 |
CSMP-200G-XX | 200 | 0.70 | 3.0 |
CSMP-300G-XX | 300 | 1.0 | 3.0 |
CSMP-450G-XX | 450 | 1.5 | 2.8 |
CSMP-600G-XX | 600 | 2.0 | 2.6 |
CSMP-800G-XX | 800 | 2.6 | 2.4 |
CSMP-900G-XX | 900 | 3.0 | 2.4 |
PRODUCT DATA
Type of Glass | E-glass glass formulation |
Resin Compatibility | Polyester, Vinyl Ester & Epoxy |
Coupling Agent | Silane |
Binder Type | Powder |
Linear Density (Tex or Yield) | Nominal ± 10% |
Moisture (%) | ≤ 0.20% |
Packaging | Plastic bag wrapped, cylindrical rolls on side, 9 rolls per pallet |
Roll Dimensions | Cylindrical 30cm ( 12 .0” ) DIA x roll widths 15cm (6”) to 320cm (125”) |
Roll Weights | 24 kg (53 lb) to 70 kg (154 lb) |
Pallet Configuration | Stretch Wrapped and Top Protected . Number of rolls and layers vary with roll width |
Storage Recommendations | Stack pallets only one (1) high. Do Not Double Stack |
