Product Description

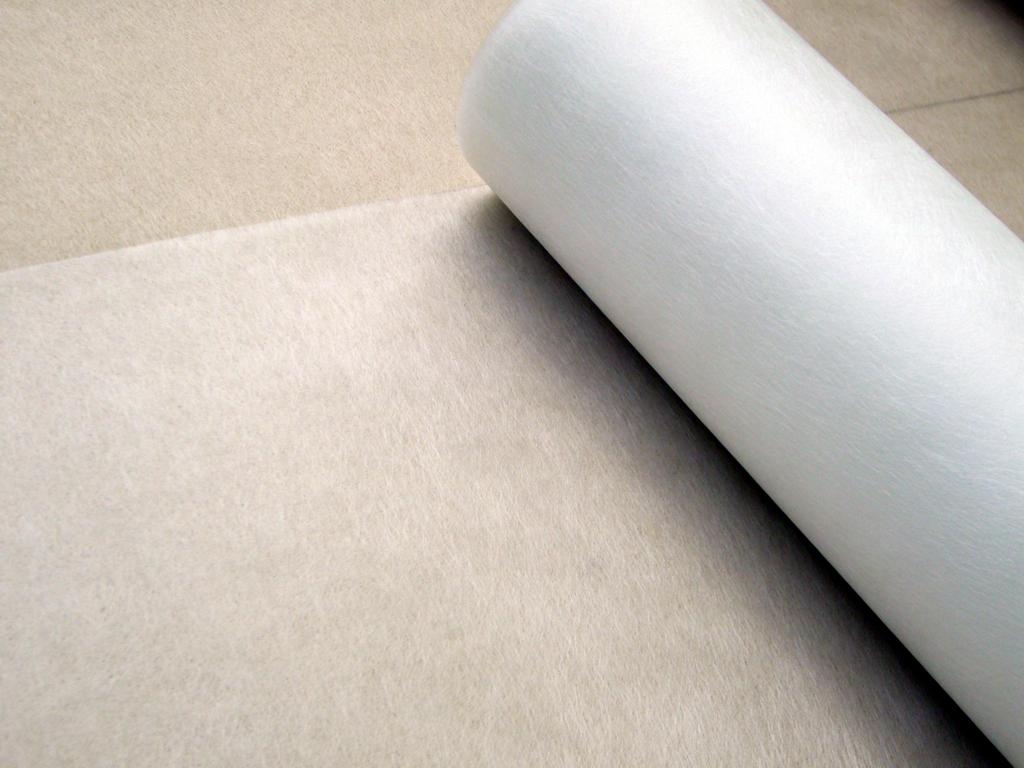

TCR (ECR) glass surface mat is produced with TCR glass wet chopped fiber by wet forming process. It is compatible with Unsaturated Polyester (UP), Vinyl Ester (VE) and Epoxy (EP) resin systems and widely used in interior & exterior surface laminates of pipes & tanks, to improve the chemical corrosion resistance, anti-leakage, laminate strength, appearance and extend the service life.
Properties
Even distribution of fiber;
Smooth and soft surface;
Fast wet-out;
Excellent molding property;
TCRMS25-43-750
TCR------------------------TCR glass
MS--------------------------Surface Mat
25----------------------------Area Weight(g/㎡)
43----------------------------Width mm
750---------------------------Roll Length (m)
Technical Data
Product Code | Area Weight |
LOI/ % | Tensile Strength/N | Moisture Content % | Resin Wet Out | |
Core Value g/m2 | Average Deviation /% | |||||
TCRMS-25 | 25 | ± 10 | ≤10 | ≥ 30 | ≤0.5 | Fast |
Tube I.D: 76mm
Packaging
1. Roll packaging：Each roll is wrapped in PE film, put into a bulk carton and stacked on the pallet.
2. Pallet packaging：Pallets should NOT be stacked in more than 2 layers.
Storage
This product should be stored in a dry, ventilated and rainproof place, with temperatures from 5℃ to 35℃ and humidity between 35% and 65%. It is recommended to be kept in intact package when not used to avoid damp.
